Piano Bench

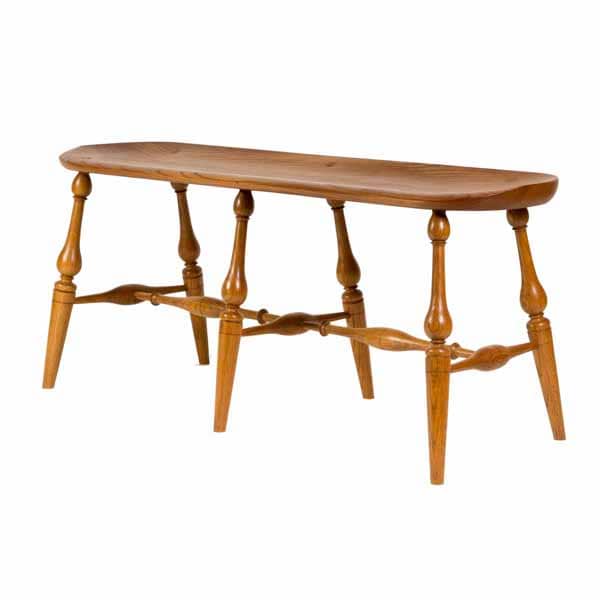

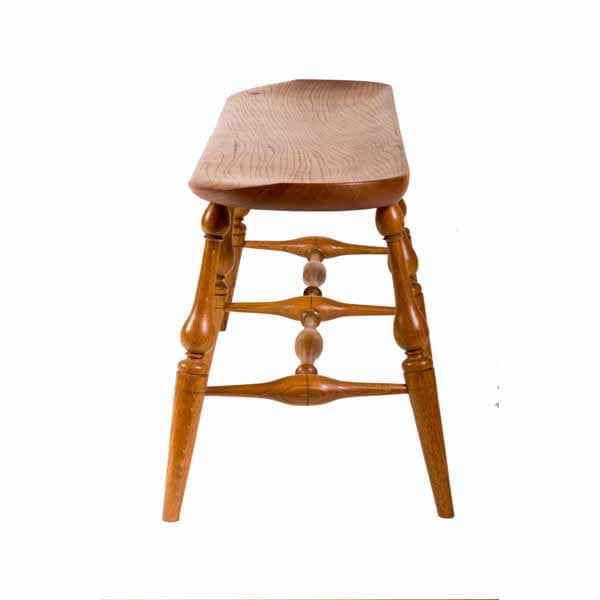

This piano  bench was designed and made for my daughters when they began learning to play the piano. Two adults can easily play together sitting on the bench and its seat shape automatically encourages good posture in players and has been found to be very comfortable. The example shown is in English oak and elm and was fumed lightly in ammonia to give a slightly darken the colour of the oak.

maximum dimensions: 52″ x 17.25″ x 21.5″ ( w  x d  x h )

The design of the piano bench is simple and is an extended stool. Its length requires six legs and therefore three side-stretchers and two long centre stretchers. The leg design is American from around 1780 and the centre stretchers use a design from the same era.

The seat is long and heavily sculpted. No more than 3/8” of thickness is left at the low point of the seat and much wood is also removed to the front of the seat. The resulting piece is light and easy to move.

Unlike most chairs, the seat is positioned parallel to the floor so that the player is not thrown away from the piano. The height of the under surface of the seat is 19” above the floor both at the front and back of the bench. This height is greater than for normal chairs and should be carefully considered if the bench is ever to be used at a table.

Buy the Piano Bench plans

Immediate
download

Scale drawings
For printing (pdf) on A4/letter size paper
£12.50

Immediate
download

Full size drawings
For printing on A0/ANSI E-size paper
£12.50

The piano bench shown has been made by James Mursell of The Windsor Workshop in Sussex, England.

James’ guiding principle when creating Windsor chairs is to make them as elegant as possible. This is achieved by removing all unnecessary wood from the chair. In addition each part is shaped to minimise its visual weight, where appropriate.
